Adjusting Toe-In—Adjustable Front Axle (High Clearance)

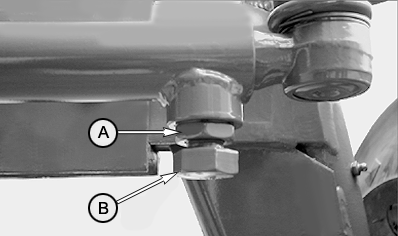

P13211-UN-20SEP04

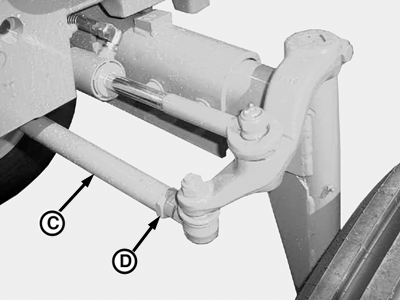

P13212-UN-20SEP04

A - Lock Nut

B - Bolt

C - Tube

D - Lock Nut

1. Loosen lock nut (A) and remove bolt (B).

2. Loosen lock nut (D) on the other side.

3. Turn tube (C) to lengthen or shorten tie rod until toe-in is 3 to 6 mm (1/8 to 15/64 in.)

4. Reinstall bolt (B) and tighten lock nut (A) to 150 N•m (110 lb-ft)

5. Tighten lock nut (D) to 210 N•m (180 lb-ft).
