Driving Tractor On Roads—IOOS

CAUTION: Observe the following precautions when operating on a road.

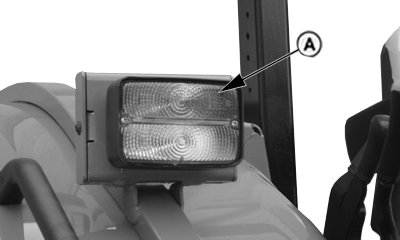

  1. PUM2029
    PUM2029-UN-16JAN07

    PUM2007
    PUM2007-UN-09JAN07

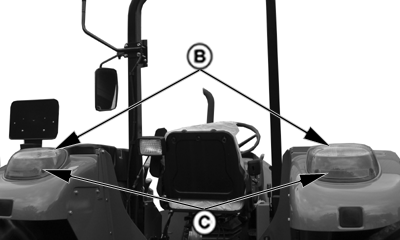

    PUM2028
    PUM2028-UN-16JAN07

    A - Front Warning/Turn Signal Lights

    B - Rear Warning/Turn Signal Lights

    C - Tail Lights

    Before operating tractor on highway be sure front warning/turn signal lights (A), rear warning/turn signal lights (B), and tail lights (C) are working properly.

    Turn movable warning lights (A) towards the front so they are visible to oncoming vehicles.

    Install Slow Moving Vehicle (SMV) emblem, reflectors and auxiliary lighting to equipment as required for safety and local regulations. Clean the SMV emblem for best visibility.


  2. CAUTION: NEVER operate flood lamp(s) when transporting Tractor. Clear bright light(s) at the rear of the Tractor could confuse drivers of other vehicles as they approach from the rear.

    On 5625 and 5725; In addition to flood lamp(s) NEVER operate fender lamps when transporting Tractor. Bright lights could blind drivers of other vehicles as they approach.

    IMPORTANT: Refer to lights section for detailed descriptions of lighting operations and functions.

    P13689
    P13689-UN-26JUL05

    A - Turn Signal Lever

    B - Light Switch

    C - Brake Pedals

    Turn light switch (B) to warning, high beam headlights or low beam headlights position. Never use bright lights which are visible from the rear. Always dim head lamps before meeting another vehicle. Keep head lamps properly adjusted.


  3. Use turn signals when turning. Be sure to return control lever (A) to center position after turning.

  4. Couple brake pedals (C) together before driving on a road. Avoid hard applications of brakes.

  5. PUM2022
    PUM2022-UN-09JAN07

    A - MFWD Shift Lever

    Disengage front-wheel drive (A) when transporting Tractor with MFWD. Excessive front tire wear will result from transporting on hard surfaces with the MFWD engaged.


  6. Drive slowly enough to maintain safety control at all times. Slow down for hillsides, rough ground, and sharp turns, especially when transporting heavy, rear-mounted equipment.

  7. Before going down a hill, shift to gear low enough to control speed without using brakes. Never coast down hill.

  8. When transporting downhill on icy or graveled grades, be alert for skids which could result in loss of steering control. To decrease chance of skids, reduce speed and be sure Tractor has proper ballast.

  9. TS217
    TS217-UN-23AUG88

    Transporting Towed Loads.

    Lock drawbar pin in place, and use safety chain to help control draw equipment should it accidentally separate from drawbar while transporting.

    CAUTION: A safety chain will help drawn equipment should it accidentally separate from the drawbar. Using the appropriate adapter parts, attach the chain to the Tractor drawbar support or other specified anchor location. Provide only enough slack in the chain to permit turning. See your John Deere dealer for a chain with a strength rating equal to or greater than the gross weight of the towed machine. DO NOT use safety chain for towing.

    IMPORTANT: Safety chain is provided for transport only. It must not be used for pulling or towing implements, or other items, not attached to drawbar, or damage to your Tractor may result.

    NOTE: Attach trailer brakes (if equipped) and check for proper operation.


  10. CAUTION: Stopping distance increases with speed and weight of towed loads, and on slopes. Towed loads with or without brakes that are too heavy for the Tractor or are towed to fast can cause loss of control. Consider the total weight of the equipment and its load.

    Observe these recommended maximum road speeds, or local speed limits which may be lower:

    • If towed equipment does not have brakes, do not travel more than 32 km/h (20 mph) and do not tow loads more than 1.5 times the Tractor weight.
    • If towed equipment has brakes, do not travel more than 40 km/h (25 mph) and do not tow loads more than 4.5 times the Tractor weight.

    Ensure the load does not exceed the recommended weight ratio. Add ballast to recommended maximum for Tractor, lighten the load, or get a heavier towing unit. The Tractor must be heavy and powerful enough with adequate braking power for the towed load. Use additional caution when towing loads under adverse surface conditions, when turning and on inclines.

    TS216
    TS216-UN-23AUG88

    Use caution when operating Tractor at transport speeds. Reduce speed if towed load weighs more than Tractor and is not equipped with brakes. (See Towed Equipment Operator's Manual for recommended transport speeds.)


  11. Use additional caution when transporting towed loads under adverse surface conditions, when turning and on inclines.

  12. Heavy towed or rear mounted implements may start swaying in transport. Excessive swaying will result in loss of steering control. Drive slowly and avoid quick turns of steering wheel. Refer to your implement operator’s manual regarding maximum travel speed limitations.

MK41968,000027A-19-20071023
