Adjust PTO Clutch Operating Rod — OOS

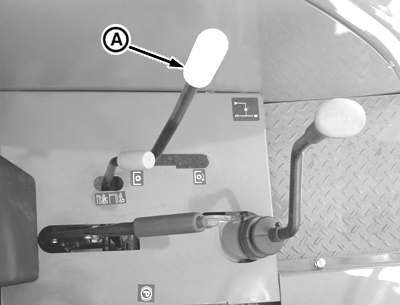

P13170-UN-01SEP04

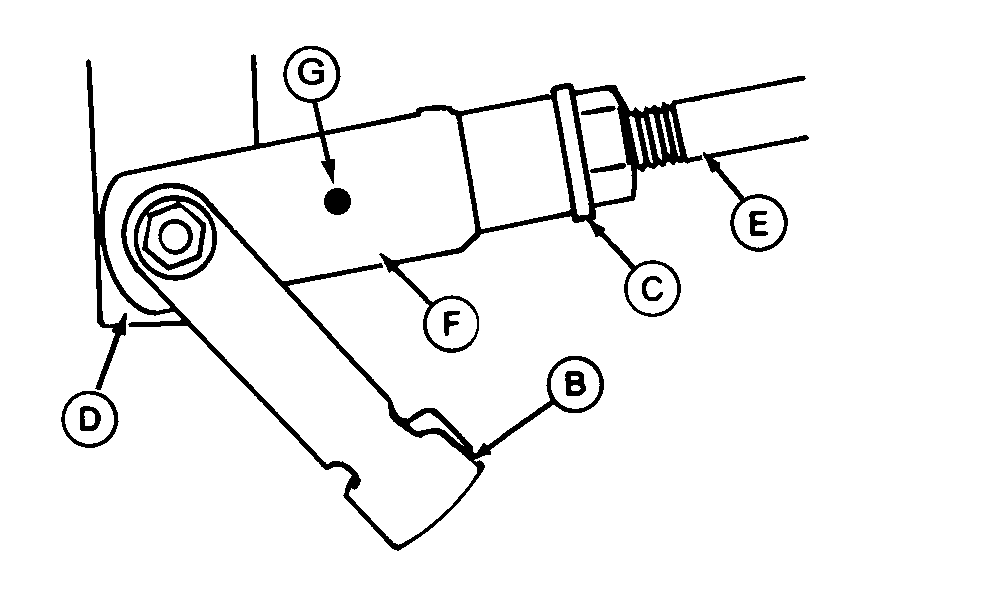

P14207-UN-23AUG06

A - PTO Clutch Lever

B - Clip Pin

C - Jam Nut

D - Clutch Activation Lever

E - Rod

F - Clevis

G - Guide Mark

Service Interval — Every 50 hours (in case of constant use)

1. Disengage PTO lever (A) by pushing it all the way back.

2. Remove clip pin (B) from the linkage, at the clutch activation lever (D) in the transmission housing.

3. Loosen the jam nut (C).

4. Push the clutch activation lever (D) towards tractor rear axle softly, until resistance is felt.

5. Adjust length of linkage (E) so the yoke (F) lines up with the clutch activator lever (D) hole.

6. Turn yoke (F) 1.5 turns to lengthen the linkage (E) and give free play to the lever.

   NOTE: Mark the yoke (F) with a point, it helps to keep the count of turns.

7. Install yoke (F) on clutch activation lever, installing clip pin (B) and tighten jam nut (C).
