Machine Dimensions — IOOS

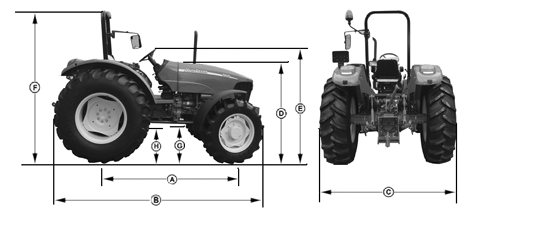

PUM2030-UN-18JAN07

	5625		5725
	2WD	4WD	2WD	4WD
STANDARD TIRES
Rear Front	12.4 X 24 18.4 X 30	12.4 X 24 18.4 X 30	12.4 X 24 18.4 X 30	12.4 X 24 18.4 X 30
A - STANDARD WHEELBASE	2180 mm 85.8 in	2180 mm 85.8 in	2180 mm 85.8 in	2180 mm 85.8 in
B - OVERALL LENGTH1
Including draft links	3797 mm 149.5 in	3797 mm 149.5 in	3797 mm 149.5 in	3797 mm 149.5 in
C - OVERALL WIDTH (Inner edge of tires)
44- in. tread setting	2100 mm 82.6 in	2100 mm 82.6 in	2100 mm 82.6 in	2100 mm 82.6 in
D - HEIGHT TO TOP OF HOOD	1720 mm 67.7 in	1720 mm 67.7 in	1720 mm 67.7 in	1720 mm 67.7 in
E - HEIGHT TO TOP OF STEERING WHEEL	1970 mm 77.5 in	1970 mm 77.5 in	1970 mm 77.5 in	1970 mm 77.5 in
F - HEIGHT TO TOP OF ROPS	2608 mm 102.6 in	2608 mm 102.6 in	2608 mm 102.6 in	2608 mm 102.6 in
G - FRONT AXLE CROP CLEARANCE	509 mm 20.0 in	420 mm 16.5 in	509 mm 20.0 in	420 mm 16.5 in
H - HEIGHT TO TOP OF DRAWBAR	483 mm 19 in	483 mm 19 in	483 mm 19 in	483 mm 19 in
APPROX. SHIPPING WEIGHT
With standard equipment	2835 kb 6250 lb	3015 kg 6647 lb	2835 kb 6250 lb	3015 kg 6647 lb

NOTE: All dimensions are of a machine equipped with standard tires.

NOTE: Specifications and design subject to change without notice.
