Stopping Tractor with Synchronized Transmission—IOOS

PUM2063-UN-13FEB07

PUM2024-UN-09JAN07

PUM2025-UN-09JAN07

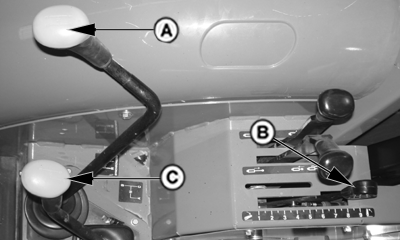

A - Gear Shift Lever

B - Rockshaft Position Control Lever

C - Range Shift Lever

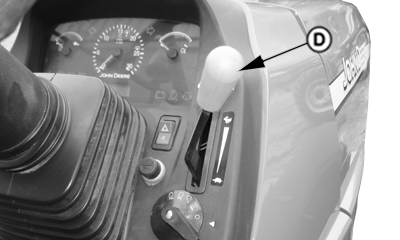

D - Hand Throttle

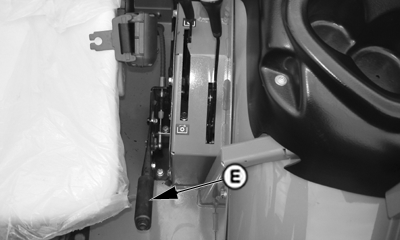

E - Park Brake

1. IMPORTANT: Tractor must be stopped before placing gear shift lever in neutral position “N”. Park pawl will not engage, and transmission may be damaged, if Tractor is moving.

   Stop the tractor and place gear shift lever (A) and range shift lever (C) in neutral “N” position.

   CAUTION: Always place the gear shift lever in neutral (N) and engage the park brake before dismounting. Leaving transmission in gear with engine stopped MAY NOT prevent Tractor from moving

2. Lower all equipment to ground using rockshaft control lever (B).

3. Pull hand throttle (D) back to slow idle position. Allow engine to idle for one to two minutes.

   IMPORTANT: Cooling of certain engine parts is provided by engine oil. Stopping a hot engine suddenly could cause damage to these parts by over heating or lack of lubrication.

4. Turn key switch to the “OFF” position.
