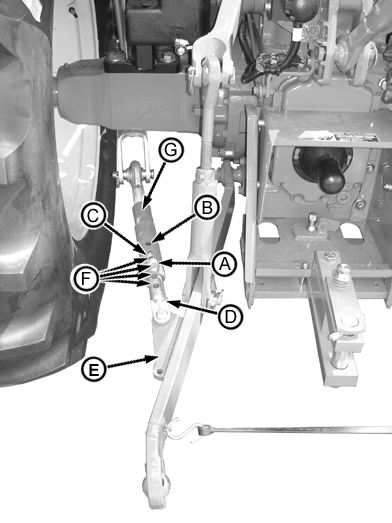

Adjusting Hitch Side Sway — If Equipped

P13717-UN-09AUG05

A - Pin

B - Sway Position Hole

C - Slot

D - Inner Sliding Member

E - Draft Link

F - Fixed Position Holes

G - Outer Fixed Member

NOTE: Check implement operator's manual for instruction on whether to allow side sway.

If sway is desired, install pin (A) in outer hole (B), ensuring it goes through slot (C) of inner sliding member (D).

If sway is not desired, move draft link (E) to desired position. Install pin in one of four fixed position holes (F) that lines up with one of the holes (not slot) of the inner member.

Adjust opposite side sway bar to same position.
