Driving on Public Roads—OOS

P13716A-UN-09AUG05

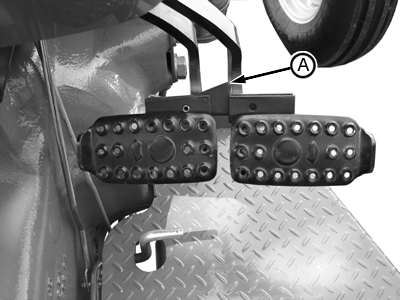

A - Brake pedals bar

CAUTION: When transporting on a public road or highway, use accessory lights and devices for adequate warning to operators of other vehicles. Check local governmental regulations. Various safety devices are available from your John Deere dealer. Keep safety items in good condition. Replace missing or damaged items.

Observe the following precautions when operating the Tractor on the road:

CAUTION: Before operating Tractor on a road, lock brake pedals together. Use brake lightly and cautiously at transport speeds.

1. Couple brake pedals together using bar (A). Avoid hard applications of brakes. Reduce speed if towed load weighs more than the Tractor and is not equipped with brakes. (Consult implement operator's manual for recommended transport speed).

   Use additional caution when transporting towed loads under adverse surface conditions and when turning or braking on inclines. Be sure wheel tread is adjusted wide to provide maximum stability.

   IMPORTANT: To prevent unnecessary wear, never ride the brakes by resting a foot on the pedals.

2.

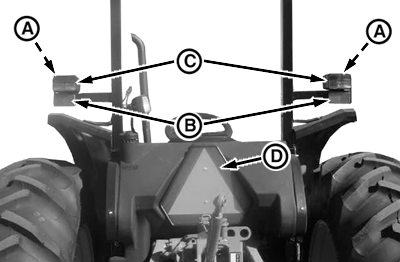

   P13476-UN-22DEC04


   P16012-UN-18MAR10

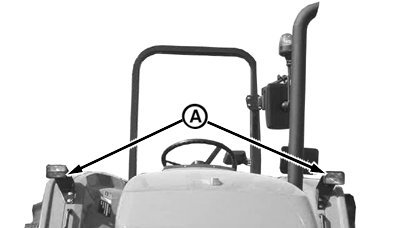

   P13481-UN-04JAN05

   If Equipped

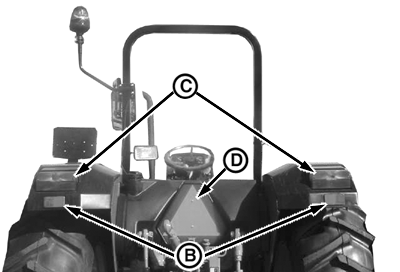

   P13482-UN-04JAN05

   If Equipped

   A - Front Warning/Turn Signal Lights

   B - Rear Reflectors

   C - Tail and Rear Warning/Turn Signal Lights

   D - SMV Emblem

   Check local laws and regulations for lighting requirements. Be sure slow moving vehicle (SMV) emblem (D), front warning/turn signal lights (A), tail and rear warning/turn signal lights (C), and rear reflectors (B) are clean and visible. If towed or rear-mounted equipment obstructs these safety devices, install SMV emblem and warning lights on equipment. (See your John Deere dealer.)

   A seven-terminal outlet at rear of tractor supplies power to warning lights on towed or rear mounted equipment. (See description of outlet in Lights section.)

---




3.
   P13324-UN-29NOV04


   P16013-UN-18MAR10


   P13679-UN-04AUG05

   A - Bright Headlight Switch Position

   B - Dim Headlight Switch Position

   C - Turn Signal Lever

   Turn light switch to position (A) .

   Always turn light switch to dim lights position (B) when meeting another vehicle. Never use flood lights or any lights which could blind or confuse other drivers.

---




4. Use turn signal when turning. Be sure to return lever (C) to center position after turning.

5. Drive slowly enough to maintain safe control at all times. Before descending a hill, shift to a gear low enough to control speed without using brakes. Slow down for rough ground and sharp turns, especially when transporting heavy, rear-mounted equipment.

6. To reduce tire wear, be sure to disengage front-wheel drive (if equipped).
