Replace Tail/Turn Light Bulbs—OOS

1. NOTE: Procedure is the same for both sides of machine.

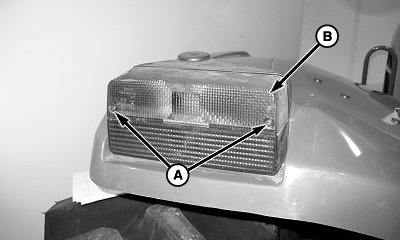

   P14706-UN-05NOV07

   Left Rear Shown

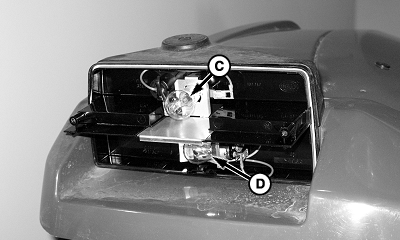

   P14707-UN-05NOV07

   A - Screw (2 used)

   B - Lens

   C - Turn Signal Bulb

   D - Tail Light Bulb

   Remove screws (A) and lens (B).

---




2. Gently push and turn bulb (C) and (D) to remove.

3. Gently push and turn new bulb to install.

4. Reinstall cover (B) with previously removed screws.
