Tighten Bolts—Adjustable Front Axle

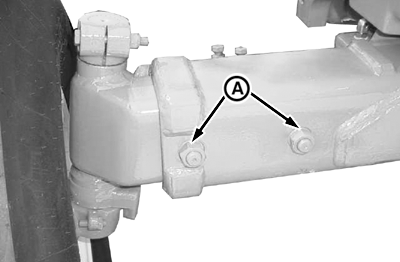

P13204-UN-20SEP04

5625 Tractor

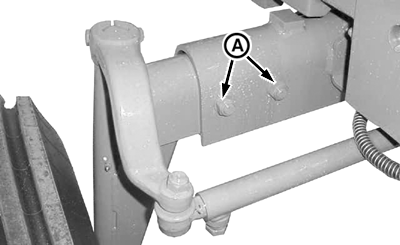

P13205-UN-20SEP04

High Clearance Tractor

M46420-UN-31JAN92

A - Front Axle Bolts

B - Disk to Flange Bolts

Tighten bolts in the following locations.

Item	Measurement	Specification
Axle to Knee Bolts	Torque	400 N•m (295 lb-ft)
Axle to Knee Bolts, High Clearance	Torque	415 N•m (305 lb-ft)
Disk to Flange Bolts	Torque	175 N•m (130 lb-ft)
