Tighten Bolts—MFWD Axle

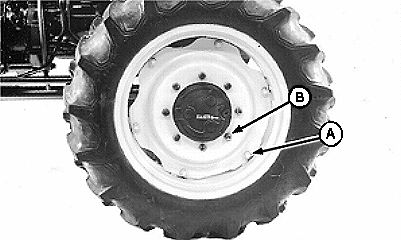

LV1975-UN-27AUG97

A - Rim to Disk Bolts

B - Disk to Flange Bolts

Tighten bolts in the following locations.

Item	Measurement	Specification
Rim to Disk Bolts (MFWD)	Torque	245 N˙m (180 lb-ft)
Disk to Hub (MFWD)	Torque	300 N˙m (220 lb-ft)
