Tread Settings—Multi-Position MFWD Wheels

Wheel tread on MFWD axle with multi-position wheels can be adjusted by repositioning or exchanging the rims or by reversing the wheel disks.

Wheel tread can also be adjusted by exchanging the complete wheel to the opposite side of the tractor. (This maneuver permits the change from disk-dished-in to disk-dished-out operations without disassembling the wheel). When changing MFWD wheels from one side to the other, the arrow on side wall of tire points in the direction of forward rotation. In certain applications, MFWD equipped tractors may operate with the arrows in the opposite direction. See Selecting Front Tire Rolling Direction in this section.

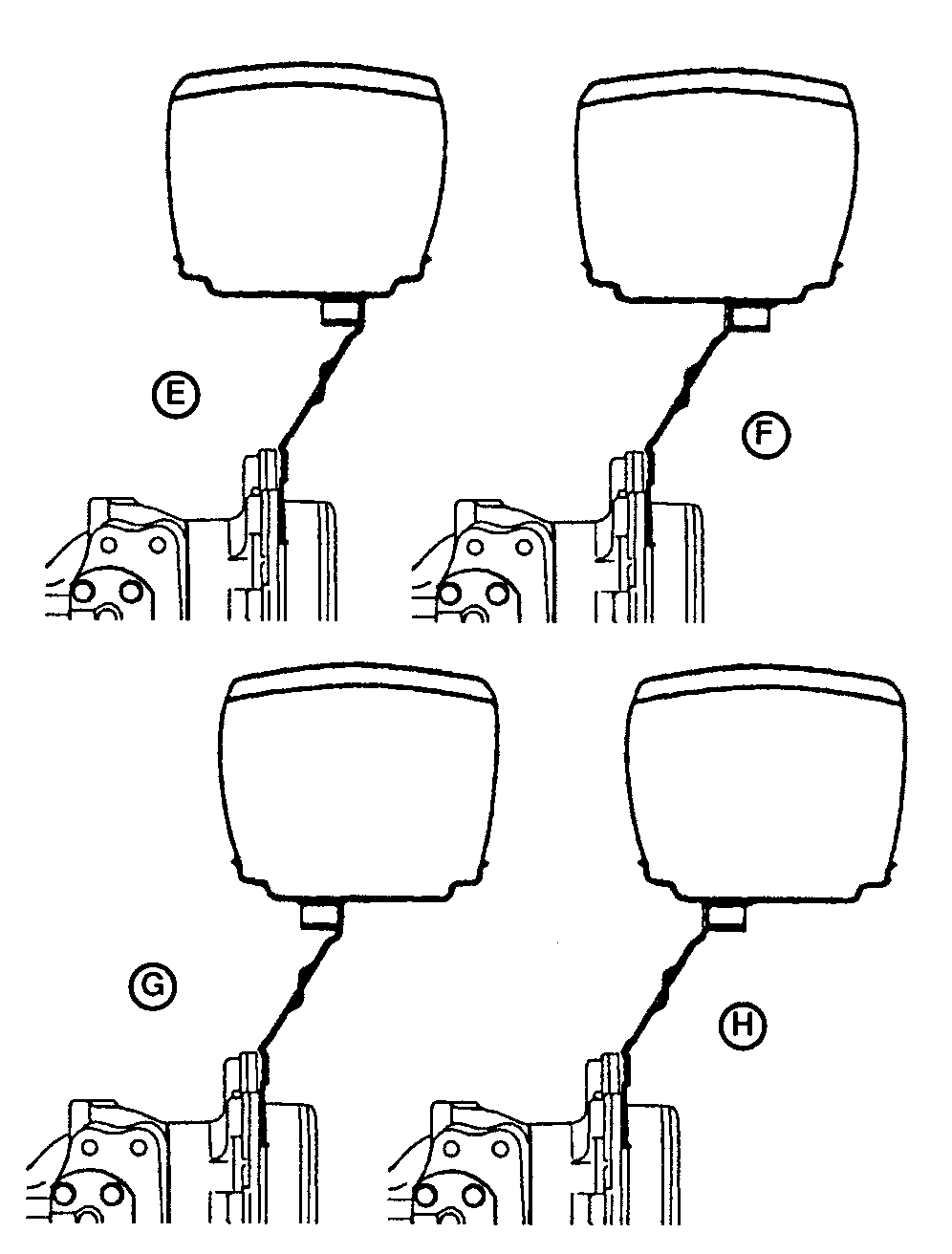

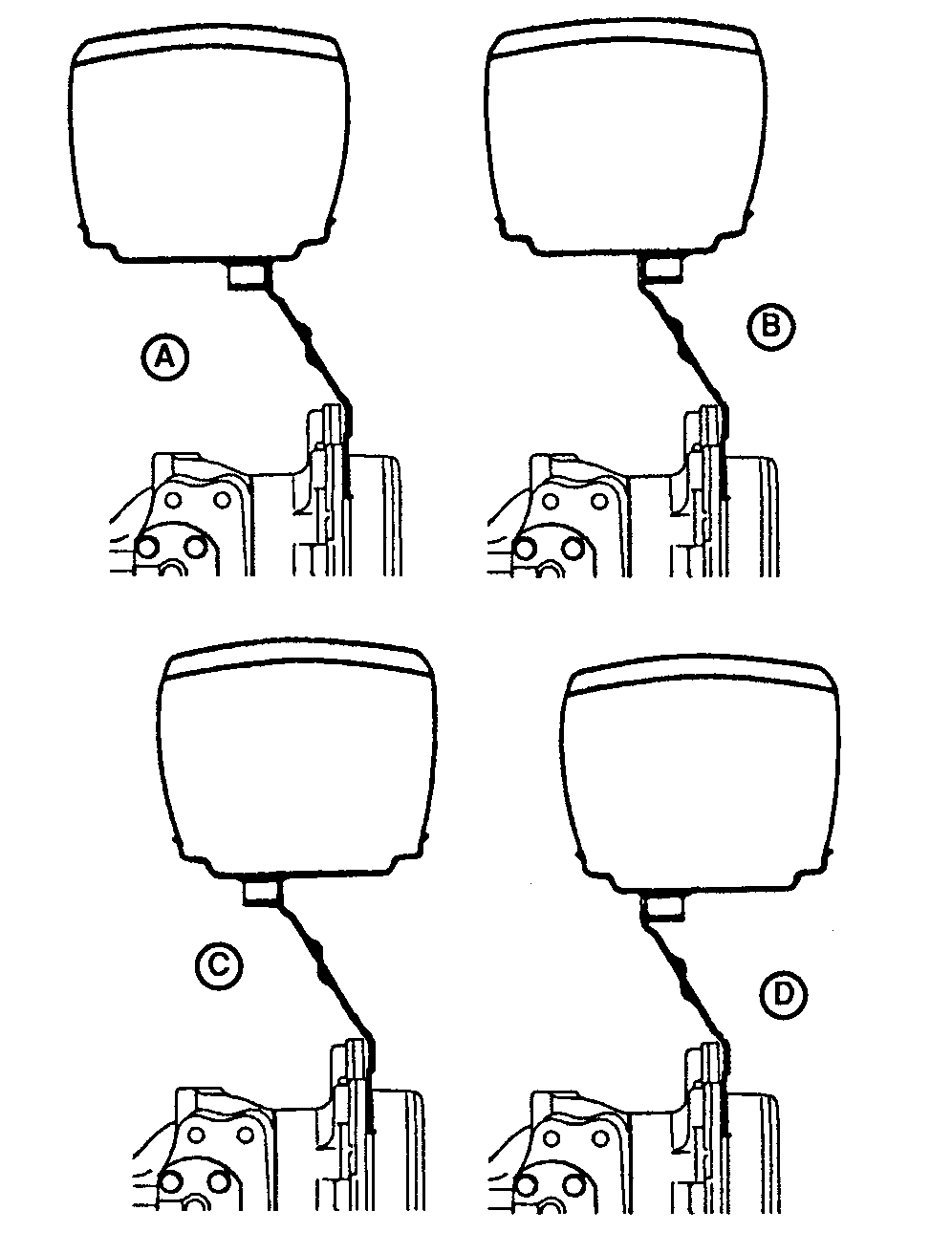

The relationship of the wheel disk and rim in obtaining the different tread settings is shown in the diagrams. A study of these diagrams, before attempting to change tread settings, will save unnecessary labor.

IMPORTANT: After setting wheel spacing, tighten MFWD wheel rim-to-disk bolts and MFWD wheel disk-to-hub bolts to specification. Drive tractor 100 m (109 yd) and tighten again.

Item	Measurement	Specification
MFWD Wheel Rim-to-Disk Bolts	Torque	245 N˙m (180 lb-ft)
MFWD Wheel Disk-to-Hub Nuts	Torque	300 N˙m (220 lb-ft)

MULTI-POSITION MFWD WHEELS TREAD WIDTH Centerline-to-Centerline
	Diagram
Tire	A	B	C	D	E	F	G	H
8.3-24, 4 PR, R1	1341 mm (52.8 in.)	1454 mm (57.2 in.)	1493 mm (58.8 in.)	1568 mm (61.7 in.)	1641 mm (64.6 in.)	1754 mm (69.1 in.)	1793 mm (70.6 in.)	1906 mm (75.0 in.)
12.5/80-18, 10 PR, I3	1538 mm (60.6 in.)	1705 mm (67.1 in.)	N/C	N/C	N/C	N/C	N/C	N/C
11.2-24, 6 PR, R1	1314 mm (51.7 in.)	1426 mm (56.1 in)	1517 mm (59.7 in.)	1629 mm (64.1 in.)	1614 mm (63.5 in.)	1726 mm (67.9 in.)	1817 mm (71.5 in.)	1929 mm (75.9 in.)
12.4-24, 6 PR, R1	1314 mm (51.7 in.)	1426 mm (56.1 in)	1517 mm (59.7 in.)	1629 mm (64.1 in.)	1614 mm (63.5 in.)	1726 mm (67.9 in.)	1817 mm (71.5 in.)	1929 mm (75.9 in.)
13.6-24, 6 PR, R1	1310 mm (51.6 in.)	1423 mm (56.0 in.)	1515 mm (59.6 in.)	1627 mm (64.1 in.)	1610 mm (63.4 in.)	1723 mm (67.8 in.)	1815 mm (71.5 in.)	1928 mm (78.3 in.)

MULTI-POSITION HIGH CLEARANCE WHEELS TREAD WIDTH Centerline-to-Centerline
	Diagram
Tire	A	B	C	D	E	F	G	H
13.6-38, 6 PR, R2	INT1	1400 mm (55.1 in.)	1498 mm (59.0 in.)	1600 mm (63.0 in.)	1698 mm (66.9 in.)	1800 mm (70.9 in.)	1898 mm (74.7 in.)	2000 mm (78.7 in.)

LV601-UN-22APR94

LV602-UN-22APR94
