Seven-Terminal Outlet — If Equipped
P13322-UN-29NOV04
LX1019770-UN-17NOV00

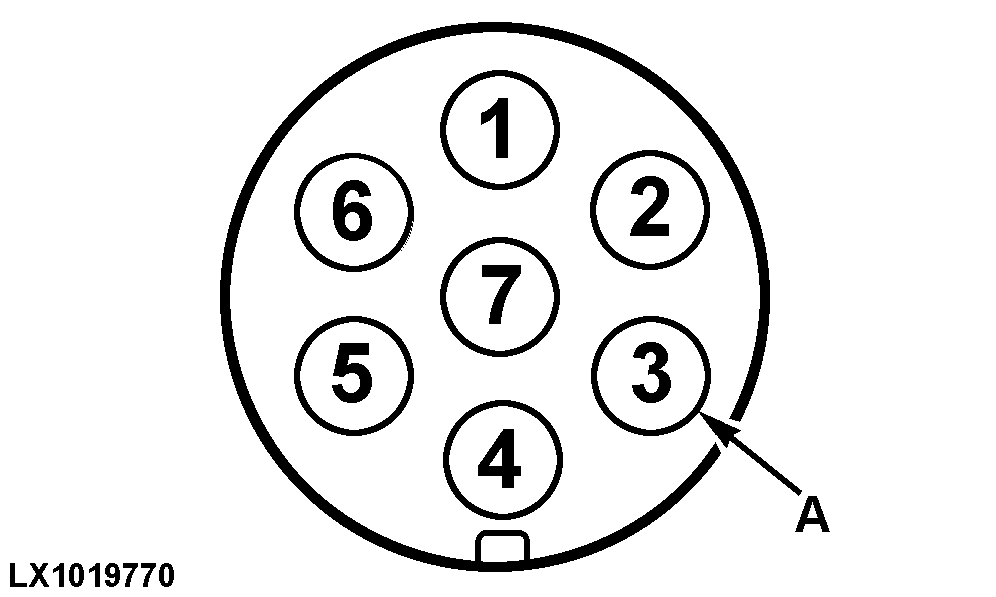

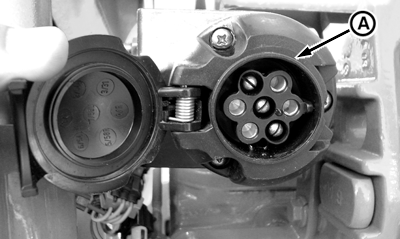

A - Seven-Terminal Outlet
Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor rear signals and other lights are obscured.NOTE: Matching plug is available through your John Deere dealer.
|
Terminal |
Function |
Wire Color |
|---|---|---|
|
1 |
Ground |
White |
|
2 |
Flood Lamp |
Black |
|
3 |
Left Turn |
Yellow |
|
4 |
Accessory |
Red |
|
5 |
Right Turn |
Dark Green |
|
6 |
Tail Lamp |
Brown |
|
7 |
Accessory |
Light Blue |
|
