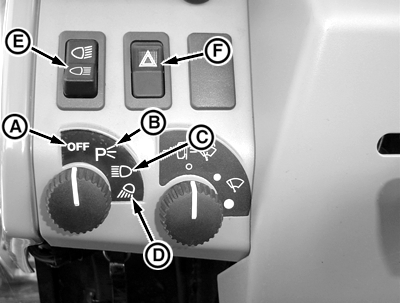

Light Switch Positions—Cab
(If equipped with warning light rocker switch)

P13876-UN-19DEC05

A - Off Position

B - Parking Light Position

C - Bright Headlight Position

D - Work Light Position

E - Headlight Dimmer Switch

F - Warning Light Rocker Switch

Tractor light switch has three operating positions:

Parking Light Position (B): Use for parking vehicle.

Bright Headlight Position (C): Use when traveling on public roads at night or during daylight hours when visibility is limited.

CAUTION: Do not use work lights when transporting on public roads. Bright clear lights can blind or confuse drivers of other vehicles as they approach from the front or rear.

Work light position (D): Use to activate front and rear facing work lights, and high beam headlights.

IMPORTANT: Keep lighting in good working order. Repair or replace damaged lighting immediately.

Keep headlights properly adjusted. See ADJUSTING HEADLIGHTS in Maintenance—Electrical System section.

Switch Position	Warning Lights (Amber) – Rear Facing 1	Warning Lights (Amber) – Front Facing 1	Taillights (Red)1	Work light(s) – Rear Facing	Work light(s) – Front Facing	Headlights
A–Off	Off	Off	Off	Off	Off	Off
B–Parking Light	Off	Off	On Steady	Off	Off	Off
C–Bright Headlight	Off	Off	On Steady	Off	Off	On–High Beams2
D–Work Light	Off	Off	Off	On	On	On–High Beams2
