Using Tail Lights—Cab
(If equipped with warning
light rocker switch)
P13879-UN-19DEC05
P13881-UN-21DEC05

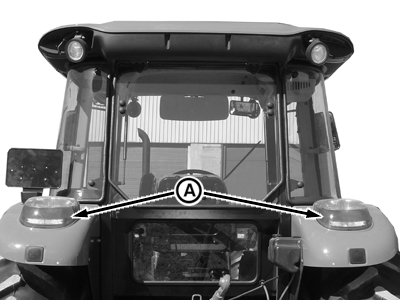

A - Red Tail Light

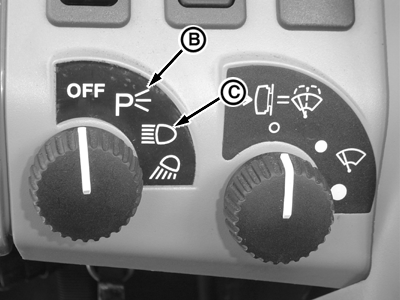

B - Parking Lights Position
C - Bright Headlights Position
Red tail lights (A) are switched on by either “Parking Lights” (B) or “Bright Headlight” (C) light switch positions.Be sure tail light lenses are clean before driving on a road, so other drivers can see it easily.
|
PX07220,0000029-19-20060128 |
