Using Work Light—Cab
(If equipped with warning light dial switch)

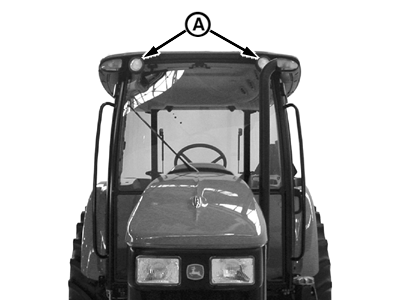

P13882-UN-20DEC05

Front Work Lights shown

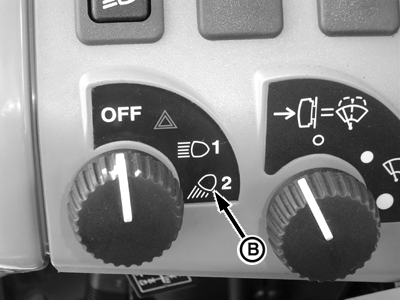

P13883-UN-20DEC05

A - Work Lights

B - Work Light Position

CAUTION: When operating on a road, move light switch to either bright or dim headlight positions. Never use work light (A) when transporting. A clear, bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

Work lights come ON when light switch is turned to work light position (B).
