Using Work Light—Cab
(If equipped with warning light rocker switch)

P13884-UN-20DEC05

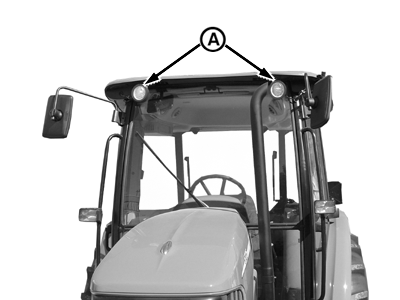

Front Work Light shown

P13885-UN-20DEC05

P13886-UN-20DEC05

A - Work Lights

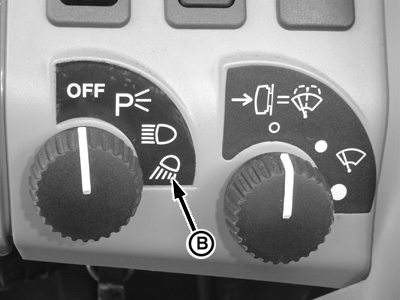

B - Work Light Position

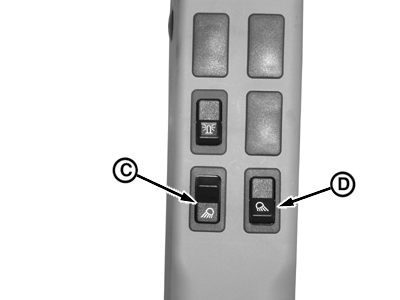

C - Front Work Light Switch

D - Rear Work Light Switch

CAUTION: When operating on a road, move light switch to either bright or dim headlight positions. Never use work light (A) when transporting. A clear, bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

Turn light switch to work light position (B) and push switch (C) and (D) to activate front and rear work lights.
