Clean Transmission Hydraulic Pickup Screen

M46986-UN-31JAN92

P13400-UN-17DEC04

A - Cap screws

B - Screen cover

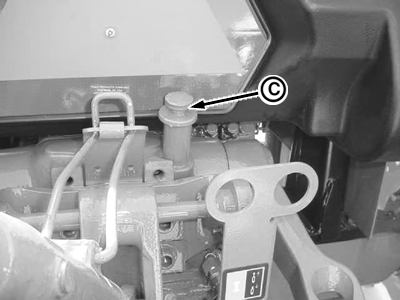

C - Dipstick

Service Interval — Every 1000 hours

1. Drain transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section).

2. Remove two caps screws (A) and remove screen cover (B).

3. Remove screen and examine for damage. Replace if necessary. Clean screen in solvent and blow dry with compressed air.

4. Carefully install screen so the front of screen is inserted in hole at front of differential case.

5. Refill transmission-hydraulic oil. (See Change Transmission-Hydraulic Oil and Filter in this section).

6. Check oil level at dipstick (C) after filling, and again after operating for 5 minutes.
