Using Clearance Lights—OOS

P13468-UN-22DEC04

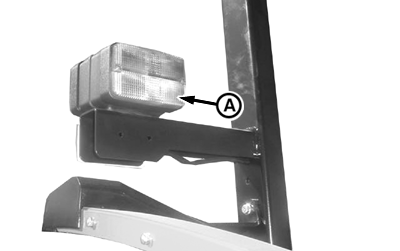

Front Warning/Turn Signal and Clearance Lights — R.H.

P13479-UN-23DEC04

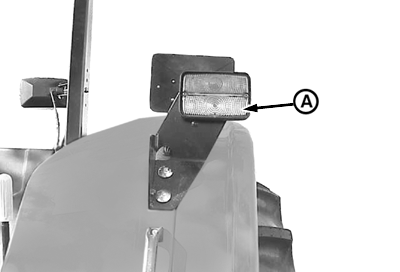

Front Warning/Turn Signal and Clearance Lights — L.H. (If Equipped)

P13313-UN-29NOV04

A - Clearance Lights

B - Parking Lights Position

C - Bright Headlight Position

D - Dim Headlight Position

Clearance lights (A) are switched on by either “Parking Lights” (B), “Bright Headlights” (C) or “Dim Headlights” (D) light switch positions.
