Replace Primary and Secondary Air Filter Elements

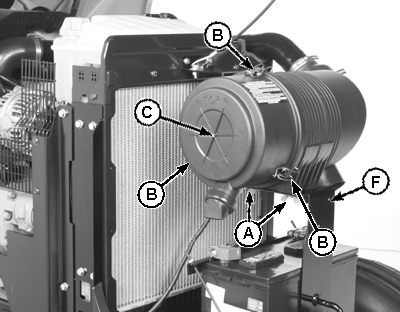

P13694B-UN-01AUG05

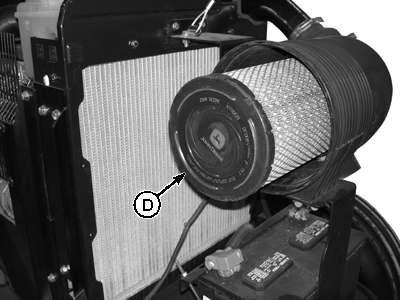

P13695-UN-10AUG05

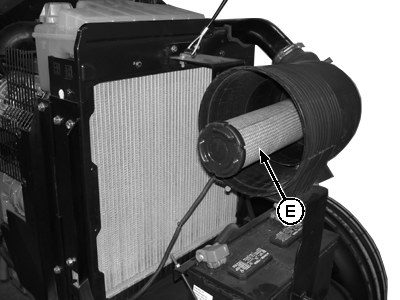

P13696-UN-01AUG05

A - Retaining Strap

B - Cover Retaining Clip (3 used)

C - Air Cleaner Cover

D - Primary Element

E - Secondary Element

F - Support

Service Interval — Every 1000 hours/Annually, whatever occurs first; or after 6 cleanness of primary element

1. Open hood and remove right-side grill panel.

2. Remove air cleaner retaining strap (A).

   NOTE: Lift up on cover end of air cleaner to aid during release of retaining clips (B) and removal of cover (C).

3. Release three air cleaner cover retaining clips (B) and remove air cleaner cover (C).

4. Remove primary (D) and secondary (E) elements.

   IMPORTANT: Install new secondary element immediately to prevent dust from entering air intake system. Dust can damage internal engine components and turbocharger, if equipped.

5. Install new secondary element.

6. Before you install primary element, clean the inside of air cleaner housing and unloader valve with a damp cloth.

7. Install new primary element.

8. Install air cleaner cover and retaining strap.
