Change Planetary Drive Oil

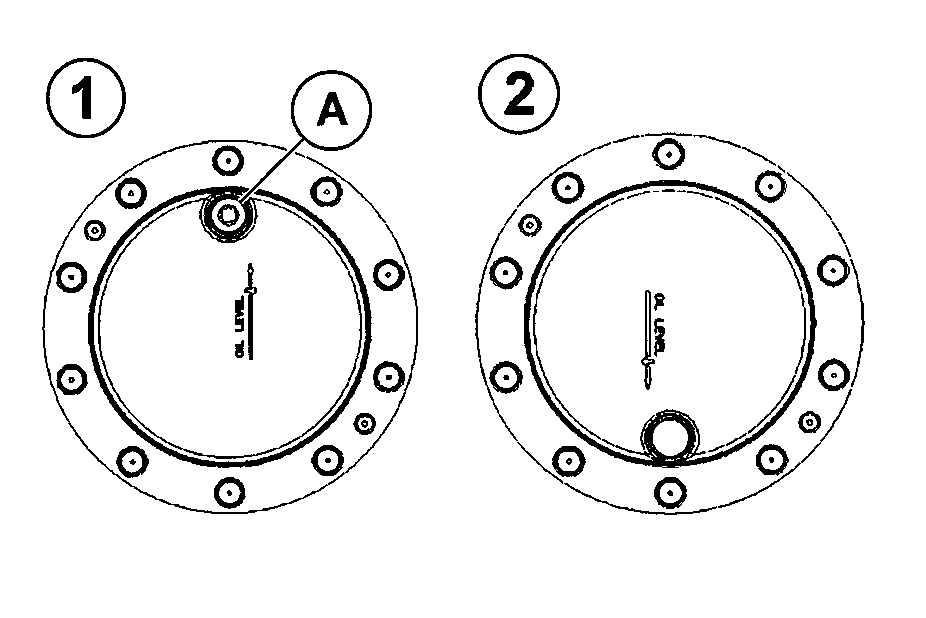

P12884-UN-19FEB04

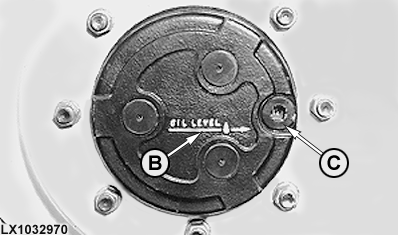

LX1032970-UN-03JUL03

A - Plug

B - Oil Level Mark

Service Intervals:

• At First 100 hours • Every 1000 hours

1. Park tractor on a level surface so that drain plug (A) is at the highest position as shown (see position 1).

2. Partially unscrew drain plug (A) to release possible pressure.

3. Move tractor until plug (A) is at the lowest position (see position 2).

4. Remove plug (A) and drain oil.

5. Move tractor until mark (B) is parallel to the ground as shown (see figure 2).

6. Fill with oil until oil level reaches the mark (B) or the bottom edge of the hole.

7. Tighten drain plug (A) to specification.

   Item	Measurement	Specification
   Planetary Drive Plug	Torque	60 N·m (44 lb-ft)
   Planetary Drive Plug (High Clearance Tractor)	Torque	80 N·m (59 lb-ft)
