Check Coolant Level

TS281-UN-23AUG88

P13706-UN-05AUG05

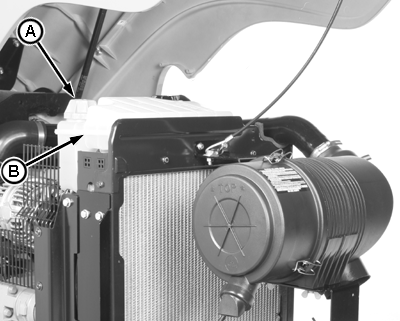

A - Radiator cap

B - Coolant tank

Service Interval — Every 10 hours

CAUTION: Only remove radiator cap (A) when engine is cold. Slowly loosen cap to first stop to relieve pressure before removing completely.

IMPORTANT: Periodically check coolant level in radiator. If cap should become defective, coolant would not be drawn from recovery tank, and could cause the engine to overheat. Replace cap as necessary.

1. Check level in coolant tank (B).

2. If engine is cool and level is below “LOW” add coolant to recovery tank to bring to “LOW”. (See Fuel, Lubricants and Coolant section).
