Check MFWD Axle Oil Level

P12886
P12886-UN-19FEB04

P12887
P12887-UN-19FEB04

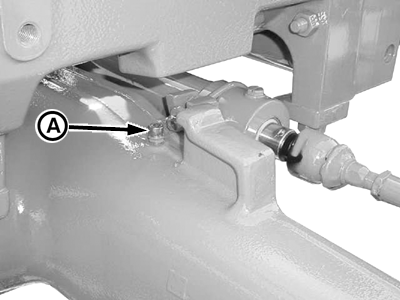

A - Breather

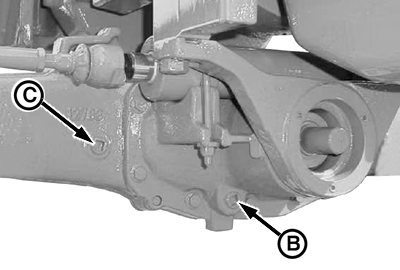

B - Drain Plug

C - Filler Plug

Service Interval — Every 250 hours

IMPORTANT: Only use an oil that is approved for this axle type.

  1. Park tractor on a level surface.

  2. Before check the oil level, use breather (A) to release possible internal pressure.

  3. Remove plug (C) and check that oil level reaches bottom edge of the hole. If it is not, refill with GL5 John Deere gear oil until oil level reaches the bottom edge of the hole.

  4. Install plug (C). Tighten to specifications.

    ItemMeasurementSpecification
    MFWD Axle Housing Drain PlugTorque70 N·m (52 lb-ft)

PX07220,000004D-19-20041019
