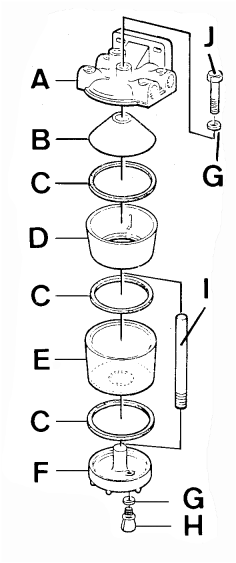

Cleaning Water Separator

P7520-UN-26OCT00

A - Cover Separator

B - Ring Seal

C - Seal

D - Separator Body

E - Bowl

F - Cover

G - Seal

H - Drain Screw

I - Thread Pipe

J - Bleed Screw

Service Interval — Every 500 hours

Drain water and contaminants from clear water separator sediment bowl by opening drain screw (H), disassembly the water separator as follows: Remove the bleed screw (J) holding the cover with the hand. Remove the cover with the parts (B), (C and D) and wash all components not use gasoline. Replace the upper seal (C) if is damaged. The upper seal marked must be facing up side. After to clean proceed to assembly the all components.
