Removing Battery

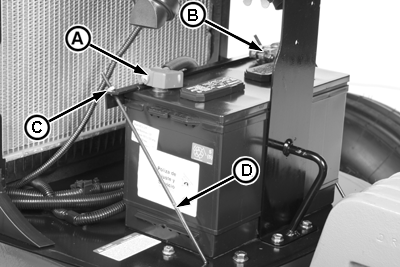

P13714-UN-05AUG05

A - Positive (+) Cable Nut

B - Negative (-) Cable Nut

C - Nuts

D - Battery Hold-Down

CAUTION: To avoid sparks, disconnect negative (ground) cable first and connect it last.

1. Remove nut retaining negative (ground) battery cable (B) and remove the cable connection. Then remove positive cable nut (A) and connection.

2. Loosen nuts (C) securing battery hold-down (D) and rotate the holder down freeing the battery.

3. Lift and slide the battery from the battery tray.
