Shifting Transmission — Collar Shift

P13716B-UN-09AUG05

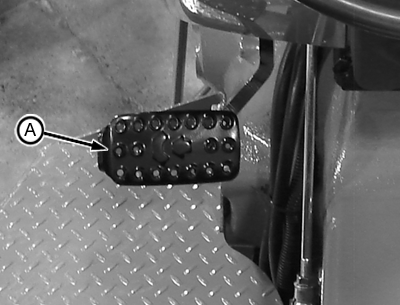

OOS Shown, Cab Similar

A - Clutch pedal

IMPORTANT: To prevent transmission damage, do not shift on-the-go. To prevent unnecessary wear, never “ride” the clutch by resting a foot on the pedal.

Depress clutch pedal (A) and stop Tractor before shifting either range shift lever or gear shift lever. Release clutch pedal gradually to take up load smoothly.
