Creeper Gear Operation (Optional)

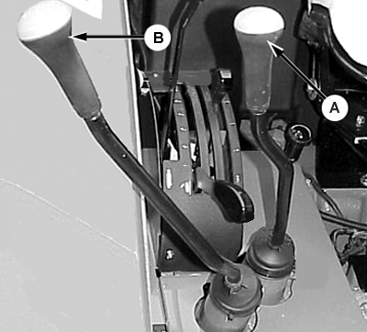

P11116-UN-18DEC01

OOS Shown; Cab Similar

A - Range shift lever

B - Gear shift lever

NOTE: In some models range shift lever is located in left-side panel.

A slow-speed gearing, creeper gear, is available as an option and provides slowest speed range.

Placing the range shift lever (A) in the optional creeper range (designated with a “snail” logo on the console) provides greatly reduced ground speeds for special operations. The gear shift lever (B) provides forward and reverse speed gears to be selected in creeper range.
