Rockshaft Control Levers—OOS

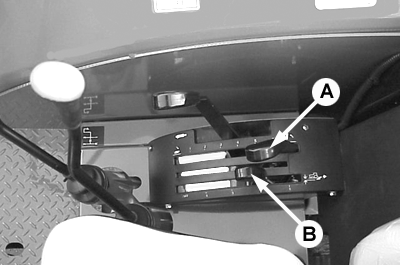

P11119-UN-17DEC01

A - Rockshaft position control lever

B - Rockshaft draft control lever

The rockshaft position is controlled by two levers, the position control lever (A) and the draft control lever (B).

The position control lever (A) raises the hitch when pulled rearward; and lowers the hitch when moved forward. See “Using Rockshaft Position Control” for more information.

The draft control lever (B) controls hitch position relative to draft loads. See “Using Draft Control” for more information.
