Setting Position Control Lever Stop

P12670A
P12670A-UN-05JUL05

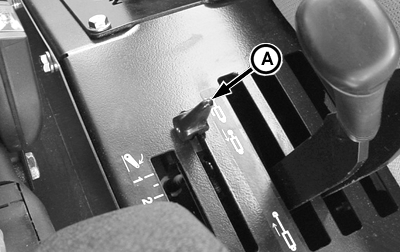

Lever Stop

P12671A
P12671A-UN-05JUL05

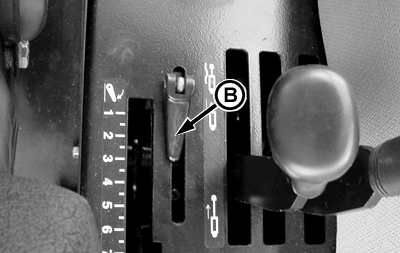

Lever Stop in Down Position

A - Lever Stop

B - Lever Stop in Down Position

NOTE: Position control lever stop is used when operating depth or height needs to be repeated often.

  1. Operate implement for a few minutes to determine proper depth or height.

  2. Raise lever stop (A), and slide against position control lever. Lock stop in position by pressing lever down (B). Rockshaft will no lower to same position each time control lever is pushed forward to the stop.
