Cleaning Cab Air Filters

LV8536-UN-01AUG03

Upper Right Side Shown (Left-Hand Side Similar)

LV8537-UN-05AUG03

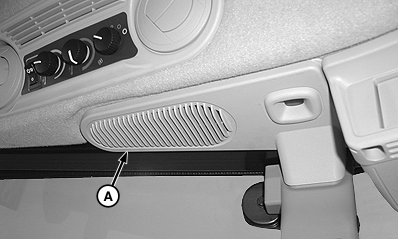

A - Filter Cover

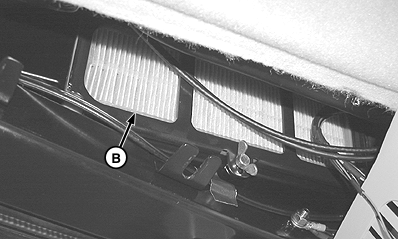

B - Recirculated Air Filter

CAUTION: The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator’s manual and those given by the chemical manufacturer when using agricultural chemicals.

Remove filter covers (A) and filters (B). Clean filters with compressed air. Cleaning filters may be required more often in dusty conditions.

LV8538-UN-01AUG03

LV8539-UN-01AUG03

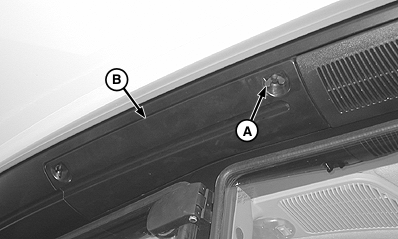

A - Screws (2 used)

B - Filter Cover

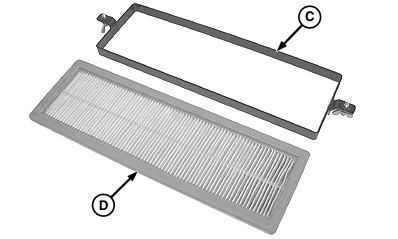

C - Retainer Plate (2 used)

D - Fresh Air Filter (2 used)

NOTE: A fresh air intake filter is located above each cab door, under roof.

Remove screws (A), filter cover (B), retainer plate (C) and filter (D). Clean filters with compressed air. Inspect filters for damage. Replace as necessary.
