Replace Tail/Turn Signal Light Bulb—OOS

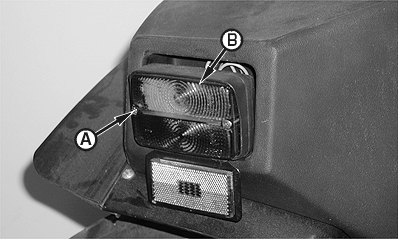

  1. LV5059
    LV5059-UN-21JUN00

    Left Rear Shown

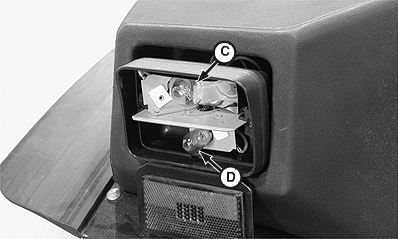

    LV5060
    LV5060-UN-27JUN00

    A - Screw (2 used)

    B - Warning Light Lens

    C - Warning Light Bulb

    D - Tail Light Bulb

    Remove screws (A) and lens (B).



  2. Push and twist warning light bulb (C) or tail light bulb (D) to release from socket.

  3. Replace bulb as necessary.

  4. Install lens and screws.

PX07220,0000082-19-20060128
