Replace Rear Flood Light Bulb—OOS

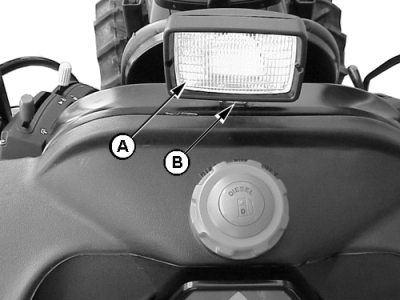

  1. P7409
    P7409-UN-29AUG00

    A - Flood Light

    B - Screw

    Loosen mounting cap screw and rotate flood light (A) outward to access cover fastening screw. Remove screw (B).



  2. Remove light cover and bulb from housing.

  3. Disconnect wiring leads from bulb.

  4. Rotate bulb counterclockwise and remove.

  5. Reverse this procedure to reassemble the flood light.
