Replacing Warning Light Bulb—Cab

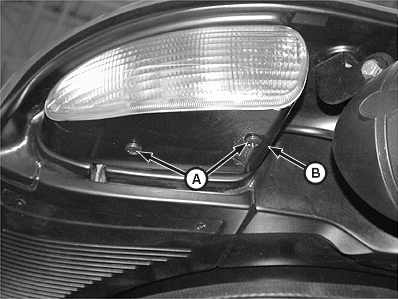

LV5559
LV5559-UN-29NOV00

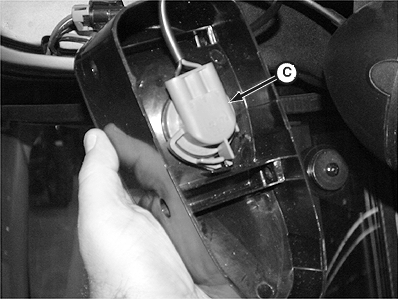

LV5560
LV5560-UN-29NOV00

A - Mounting Screw (2 used)

B - Housing

C - Bulb and Socket

NOTE: Bulb replacement procedures for front and rear warning lights are the same. Rear left-hand side shown.

  1. Remove mounting screws (A) securing housing (B) to cab roof.

  2. Remove bulb and socket (C) from housing.

  3. Pull bulb from socket.

  4. Install new bulb and socket into housing.

  5. Install housing and screws to cab roof.

PX07220,0000084-19-20060128
