Replacing Controls Illumination Light Bulb—Cab

LV9515
LV9515-UN-07AUG04

LV9598
LV9598-UN-07AUG04

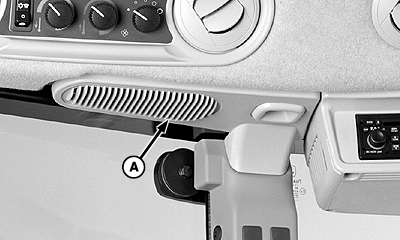

A - Panel

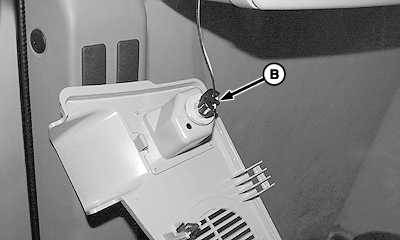

B - Light Bulb Retainer

  1. Pry off panel (A).

  2. Rotate light bulb retainer (B) counterclockwise approximately 1/4 turn and remove.

  3. Pull out light bulb.

  4. Install new bulb in reverse order of removal.

PX07220,0000089-19-20060128
