Transmission Serial Number Location

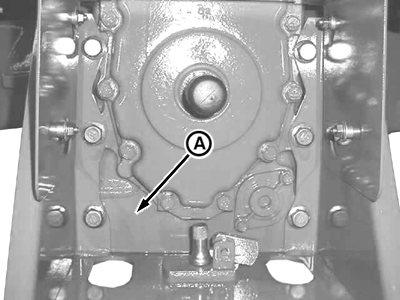

P13758-UN-10AUG05

At the rear of the machine on the bottom left corner of the differential housing

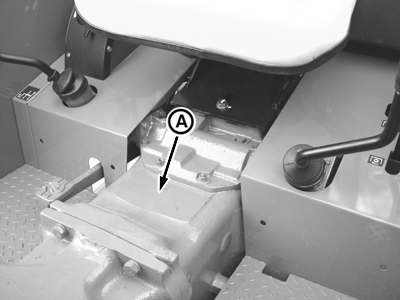

P13759-UN-10AUG05

At the top of the transmission housing

A - Transmission Serial Number

The transmission (drive train) serial number (A) is located at one of the following locations:

• At the rear of the machine on the bottom left corner of the differential housing.
• At the top of the transmission housing.
