Routing the Cables

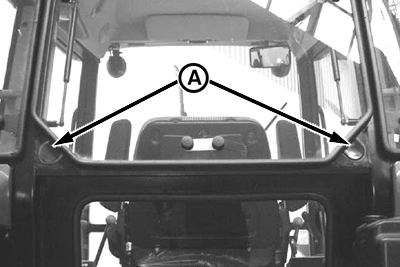

P12681-UN-24NOV03

From Outside of Cab

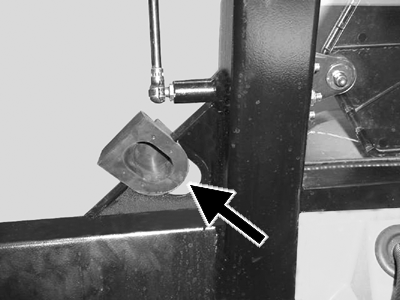

P12682-UN-24NOV03

From Inside of Cab

A - Rubber Stoppers

Rear window of cab is provided with two openings, allowing cables to be routed. Open the window and take out the rubber stoppers (A). Cut the rubber stoppers at the incisions provided to enable the cables to be routed. Connect the plugs, insert the rubber stoppers and close the window.
