Removing Hood

P13691
P13691-UN-10AUG05

P13702
P13702-UN-10AUG05

P13702A
P13702A-UN-10AUG05

P13702B
P13702B-UN-10AUG05

P13702C
P13702C-UN-10AUG05

A - Cylinder

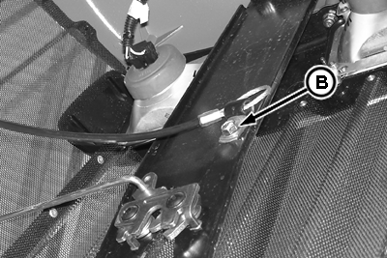

B - Screw

C - Screws from support of left side and right side.

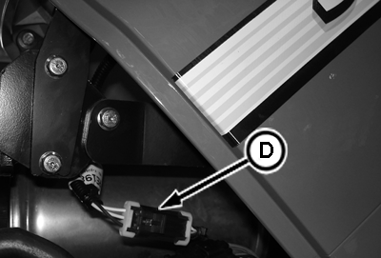

D - Wiring Harness

  1. Release the cylinders (A) from the hood.

  2. Remove the screw (B) to release the up side of the cable.

  3. Remove the screws (C) to release the hood from support.

  4. Disconnect the harness (D) to remove the hood fron the tractor..

PX07220,00000A0-19-20041206
