Cleaning Grille Screens, Radiator, Oil Cooler (If Equipped) or A/C Condenser (Cab)

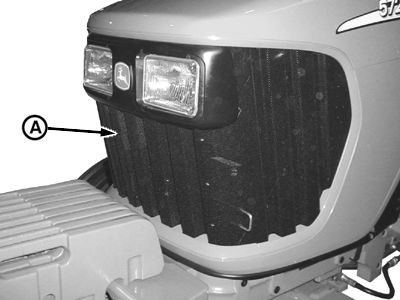

P13943-UN-03JAN06

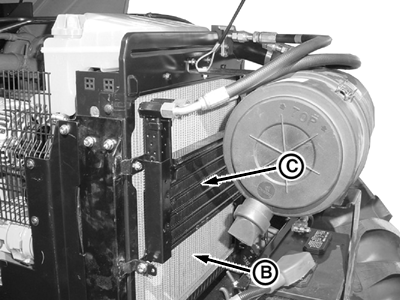

P13944-UN-03JAN06

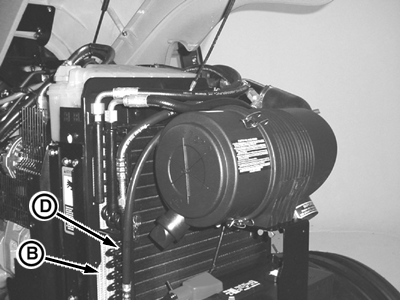

P13945-UN-03JAN06

A - Grille

B - Radiator

C - Oil Cooler (if equipped)

D - A/C Condenser (Cab)

1. Whenever trash builds up on front grille (A), stop engine and brush clean.

2. CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips, and wear personal protection equipment including eye protection.

   Raise hood and see if trash has built up on radiator (B), oil cooler (if equipped) (C), or A/C condenser (cab) (D). If so, remove it using a brush or compressed air.

   NOTE: Cab tractors equipped with air conditioning: The hydraulic oil cooler is combined with the air conditioning condenser as one unit.

3. If a more thorough cleaning is necessary, clean radiator from behind with compressed air or water. Straighten any bent fins.
