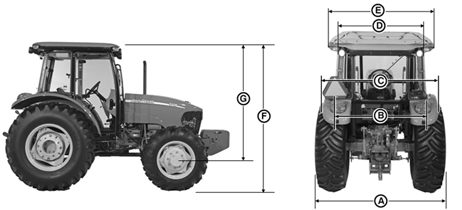

Machine Dimensions — Cab

P13950-UN-20JAN06

	5625		5725		(High Clearance) 5725
	2WD	4WD	2WD	4WD	2WD	4WD
STANDARD TIRES
Rear Front	12.4 X 24 18.4 X 30	12.4 X 24 18.4 X 30	12.4 X 24 18.4 X 30	12.4 X 24 18.4 X 30	NA1 NA1	NA1 NA1
A - OVERALL WIDTH (outside edge of tires)
44-in.tread setting (inner tire faces)	2100 mm 82.6 in	2100 mm 82.6 in	2100 mm 82.6 in	2100 mm 82.6 in	NA1	NA1
B - CAB WIDTH AT BELT LINE
Front	1118 mm 44.0 in	1118 mm 44.0 in	1118 mm 44.0 in	1118 mm 44.0 in	NA1	NA1
Rear	1754 mm 69.0 in	1754 mm 69.0 in	1754 mm 69.0 in	1754 mm 69.0 in	NA1	NA1
C - CAB WIDTH ACROSS FENDERS	1870 mm 73.6 in	1870 mm 73.6 in	1870 mm 73.6 in	1870 mm 73.6 in	NA1	NA1
D - CAB WIDTH BELOW ROOF
Front	2424 mm 95.4 in	2424 mm 95.4 in	2424 mm 95.4 in	2424 mm 95.4 in	NA1	NA1
Rear	2369 mm 93.2 in	2369 mm 93.2 in	2369 mm 93.2 in	2369 mm 93.2 in	NA1	NA1
E - CAB ROOF WIDTH	1723 mm 67.8 in	1723 mm 67.8 in	1723 mm 67.8 in	1723 mm 67.8 in	NA1	NA1
F - HEIGHT FROM GROUND
To top of cab	2584 mm 101.7 in	2584 mm 101.7 in	2584 mm 101.7 in	2584 mm 101.7 in	NA1	NA1
G - HEIGHT FROM CENTERLINE OF REAR AXLE
To top of cab	2123 mm 83.5 in	2123 mm 83.5 in	2123 mm 83.5 in	2123 mm 83.5 in	NA1	NA1
APPROX. SHIPPING WEIGHT
With standard equipment	3044 kg 6710.8 lb	3234 kg 7129.7 lb	3044 kg 6710.8 lb	3234 kg 7129.7 lb	NA1	NA1
