Fuel System Water Separator

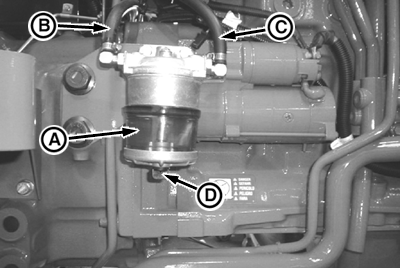

P13420-UN-17DEC04

A - Water Separator

B - Hose from Fuel Tank to Water Separator

C - Hose from Water Separator to Fuel Filter

D - Drain Screw

Service Interval — Every 10 hours

The water separator is used to obtain the better functioning of fuel system. Check water separator for water and sediment accumulations. Unscrew screw (D) in order to drain water separator.
