Machine Dimensions — OOS

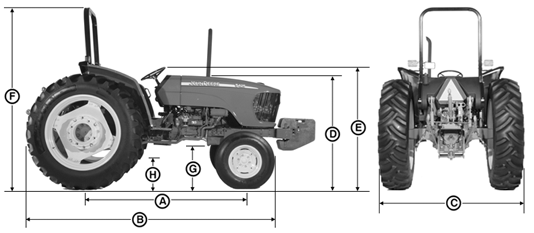

P13949-UN-19JAN06

	5425		5625		5725
	2WD	4WD	2WD	4WD	2WD	4WD
STANDARD TIRES
Rear Front	7.5 X 16 15.5 X 38	11.2 X 24 15.5 X 38	12.4 X 24 18.4 X 30	12.4 X 24 18.4 X 30	12.4 X 24 18.4 X 30	12.4 X 24 18.4 X 30
A - STANDARD WHEELBASE	2127 mm 83.7 in	2127 mm 83.7 in	2180 mm 85.8 in	2180 mm 85.8 in	2180 mm 85.8 in	2180 mm 85.8 in
B - OVERALL LENGTH1
Including draft links	3295 mm 129.7 in	3295 mm 129.7 in	3570 mm 140.5 in	3570 mm 140.5 in	3570 mm 140.5 in	3570 mm 140.5 in
C - OVERALL WIDTH (outside edge of tires)
48-in. tread setting	2010 mm 79.1 in	2010 mm 79.1 in	2100 mm 82.6 in	2100 mm 82.6 in	2100 mm 82.6 in	2100 mm 82.6 in
D - HEIGHT TO TOP OF HOOD	1590 mm 62.5 in	1640 mm 64.5 in	1785 mm 70.2 in	1785 mm 70.2 in	1785 mm 70.2 in	1785 mm 70.2 in
E - HEIGHT TO TOP OF STEERING WHEEL	1690 mm 66.5 in	1740 mm 68.5 in	1970 mm 77.5 in	1970 mm 77.5 in	1970 mm 77.5 in	1970 mm 77.5 in
F - HEIGHT TO TOP OF ROPS	2495 mm 98.2 in	2495 mm 98.2 in	2540 mm 100 in	2540 mm 100 in	2540 mm 100 in	2540 mm 100 in
G - FRONT AXLE CROP CLEARANCE	390 mm 15.3 in	320 mm 12.5 in	509 mm 20.0 in	420 mm 16.5 in	509 mm 20.0 in	420 mm 16.5 in
H - HEIGHT TO TOP OF DRAWBAR	623 mm 24.5 in	623 mm 24.5 in	513 mm 20.1 in	513 mm 20.1 in	513 mm 20.1 in	513 mm 20.1 in
APPROX. SHIPPING WEIGHT
With standard equipment	2481 kg 5469.6 lb	2670 kg 5886.3 lb	2500 kg 5511.5 lb	2687 kg 5923.8 lb	2500 kg 5511.5 lb	2687 kg 5923.8 lb

	(Orchard) 5425 and 5725		(High Clearance) 5425, 5625 and 5725
	2WD	4WD	2WD	4WD
STANDARD TIRES
Rear Front	6.5 x 16 14.9 x 24	8.3 x 24 14.9 x 24	10.0 x 16 13.6 x 38	13.6 x 38 13.6 x 38
A - STANDARD WHEELBASE	2127 mm 83.7 in	2127 mm 83.7 in	2180 mm 85.8 in	2180 mm 85.8 in
B - OVERALL LENGTH1
Including draft links	3295 mm 129.7 in	3295 mm 129.7 in	3570 mm 140.5 in	3570 mm 140.5 in
C - OVERALL WIDTH (outside edge of tires)
48-in. tread setting	2010 mm 79.1 in	2010 mm 79.1 in	2010 mm 79.1 in	2010 mm 79.1 in
D - HEIGHT TO TOP OF HOOD	1545 mm 60.8 in	1590 mm 62.5 in	1995 mm 78.5 in	2055 mm 80.9 in
E - HEIGHT TO TOP OF STEERING WHEEL	1645 mm 64.7 in	1690 mm 66.5 in	2290 mm 90.1 in	2350 mm 92.5 in
F - HEIGHT TO TOP OF ROPS	2495 mm 98.2 in	2495 mm 98.2 in	2819 mm 110.9 in	2819 mm 110.9 in
G - FRONT AXLE CROP CLEARANCE	390 mm 15.3 in	320 mm 12.5 in	777 mm 30.5 in	649 mm 25.5 in
H - HEIGHT TO TOP OF DRAWBAR	623 mm 24.5 in	623 mm 24.5 in	839 mm 33.0 in	839 mm 33.0 in
APPROX. SHIPPING WEIGHT
With standard equipment	2481 kg 5469.6 lb	2670 kg 5886.3 lb	2922 kg 6441.9 lb	3235 kg 7131.9 lb

NOTE: All dimensions are of a machine equipped with standard tires.

NOTE: Specifications and design subject to change without notice.
