Lubricate MFWD Axle

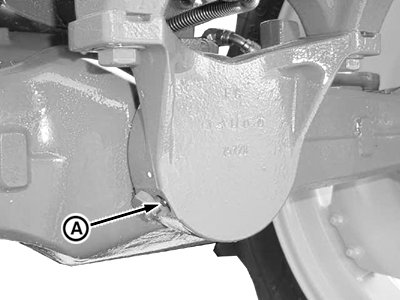

P13199-UN-17SEP04

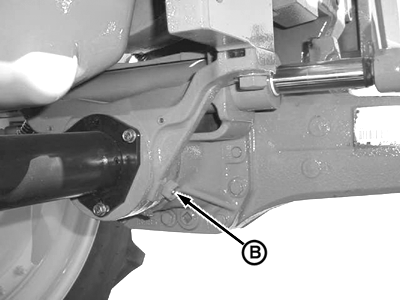

P13200-UN-17SEP04

A - Front Lub Fitting

B - Rear Lub Fitting

Service Intervals:

Front Axle Pivot Pin — Every 50 hours

Lubricate front axle pivot pin applying multipurpose grease to front (A) and rear (B) lub fittings.
