Tractor Controls—Cab with PowrReverser™

PUM2065-UN-13FEB07

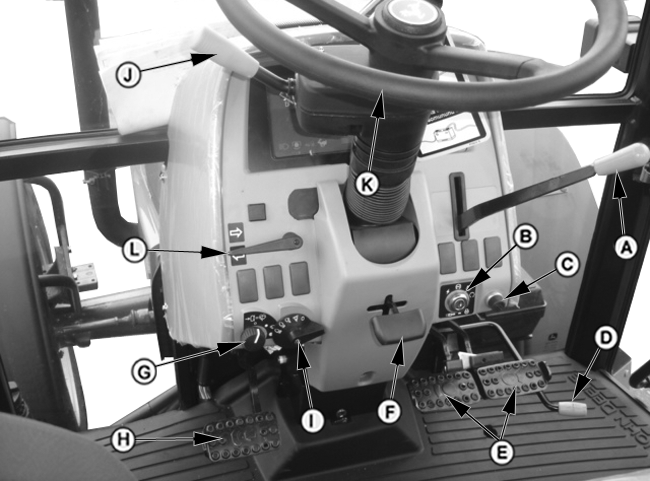

Cab Console Shown

A - Hand Throttle

B - Ignition Switch

C - Horn

D - Foot Throttle

E - Brake Pedals

F - Steering Wheel Tilt Lever

G - Wiper Switch

H - Clutch Pedal

I - Light Switch

J - Electro-Hydraulic Directional Reverser (If Equipped)

K - Steering Wheel

L - Turn Signal Lever
