Operating Front-Wheel Drive

P11117-UN-17DEC01

OOS

PULV007129-UN-22JUL10

Cab

PUM2022-UN-09JAN07

IOOS

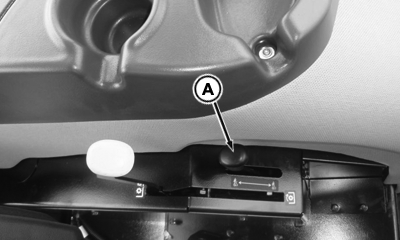

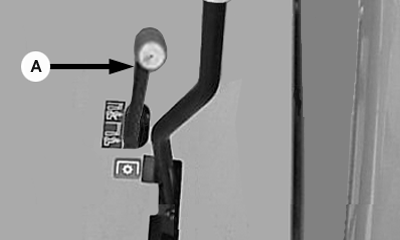

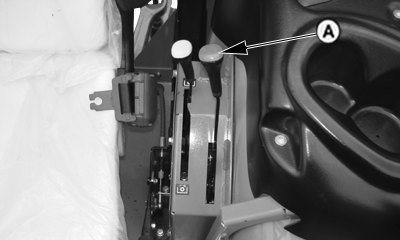

A - MFWD shift lever

Use front-wheel drive as required for better traction.

CAUTION: Front-wheel drive greatly increases traction. When this option is used, extra caution is needed on slopes. Compared to 2-wheel drive, a front-wheel drive Tractor maintains traction on steeper slopes, increasing the possibility of a tip over.

When driving on icy, wet or graveled surfaces, reduce speed and be sure Tractor is properly ballasted to avoid skidding and loss of steering control. For best control, engage front wheel drive (if equipped).

IMPORTANT: 1.- To extend tire life, engage front-wheel drive only when needed. DO NOT engage when driving on hard surfaces.

2.- DO NOT install tire chains on Tractor front wheels: chains will strike and damage Tractor.

3.- To prevent transmission damage, DO NOT engage or disengage front-wheel drive on the go.

Depress clutch pedal and stop Tractor before engaging or disengaging front-wheel drive. Push shift lever (A) forward to engage, and pull lever back to disengage drive.
