Tighten Bolts—Rear Axle

LV1947-UN-28APR97

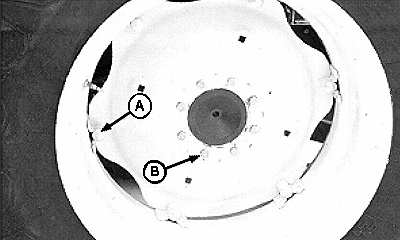

Steel Disk

LV1948-UN-28APR97

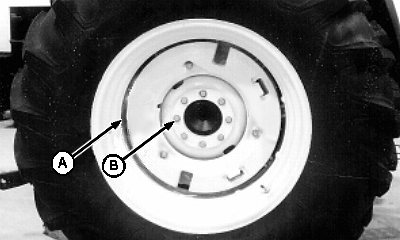

Cast Disk

Tighten bolts in the following locations.

Item	Measurement	Specification
Rim to Disk, (18.4-30, 16.9-30, 16.9-24 and 14.9-24)	Torque	245 N•m (180 lb-ft)
Rim to Disk, (15.5-38 and 13.6-38)	Torque	325 N•m (240 lb-ft)
Disk to Hub, M20 Bolts	Torque	500 N•m (370 lb-ft)
