Tractor Controls — Right-Hand Side Panel (OOS)

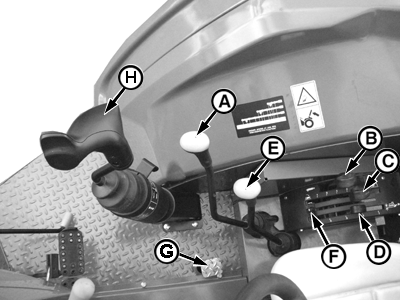

P15999-UN-16MAR10

P16500-UN-04APR12

A - Gear Shift Lever

B - Selective Control Valve (SCV) Lever

C - Rockshaft Position Control Lever

D - Rockshaft Draft Control Lever

E - Range Shift Lever

F - Position Control Stop

G - Differential Lock Pedal

H - Joystick Lever (If Equipped)

I - EH PTO Control (If Equipped)

NOTE: In some models, range shift lever is located in left-side panel.
