Tractor Controls—Right-Hand Side Panel (Cab)

P16097-UN-24SEP10

PULV007159-UN-26JUL10

P16501-UN-04APR12

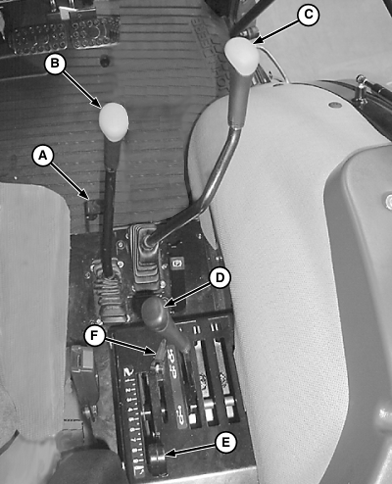

A - Differential Lock Pedal

B - Range Shift Lever

C - Gear Shift Lever

D - SCV I Control Lever

E - Rockshaft Position Control Lever

F - Position Control Stop Knob

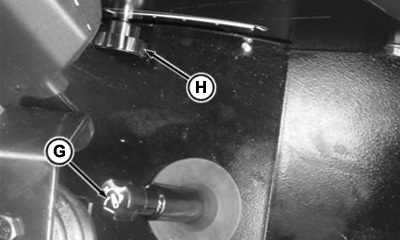

G - Rockshaft Rate-of-Drop Knob

H - Rockshaft Draft Control Knob

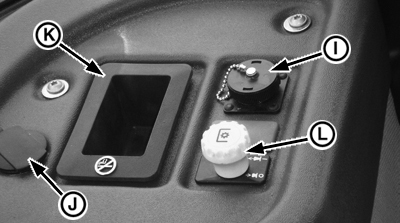

I - 12-Volt Accessory Electrical Outlet

J - Cigarette Lighter

K - Ashtray

L - EH PTO Control (If equipped)

NOTE: The rockshaft rate-of-drop knob (H) is located behind driver’s seat on lower right-hand side.
