Using Work Light—OOS and IOOS (If equipped with warning light knob)

P13464-UN-22DEC04

OOS Shown; IOOS Similar

P13310-UN-29NOV04

P13465-UN-22DEC04

OOS Shown; IOOS Similar

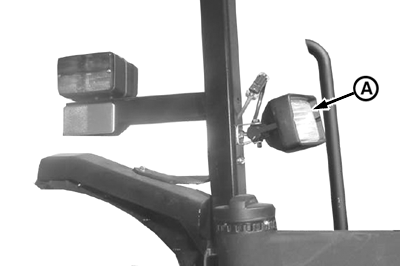

A - Worklight

B - Worklight Position

C - Bright Headlight Position

D - Dim Headlight Position

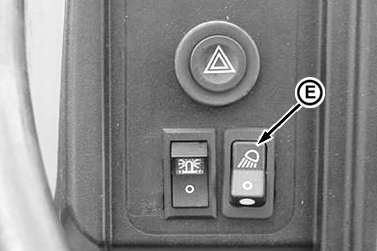

E - Worklight Switch (If Equipped)

CAUTION: When operating on a road, move light switch to either bright or dim headlight positions (C or D). Never use worklight when transporting. A clear, bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

Turn light switch to “Worklight” position (B) and push switch (E) to activate worklight (A).
