Using Work Light—OOS (If equipped with warning light dial switch)

P16006-UN-16MAR10

P13059-UN-21MAY04

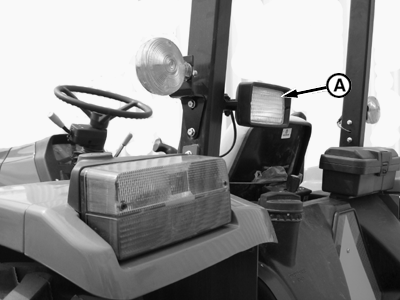

A - Worklight

B - Worklight Position

C - Bright Headlight Position

D - Dim Headlight Position

CAUTION: When operating on a road, move light switch to either bright or dim headlight positions (C or D). Never use worklight when transporting. A clear, bright light at the rear of the tractor could confuse drivers of other vehicles as they approach from the rear.

Turn light switch to “Worklight” position (B) to activate worklight (A).
