Using Warning Lights—OOS (If equipped with warning light knob)

P13466-UN-18MAR10

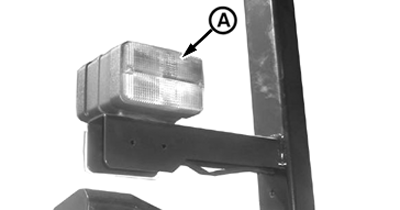

Front Warning/Turn Signal and Clearance Lights — R.H.

P13467-UN-15AUG08

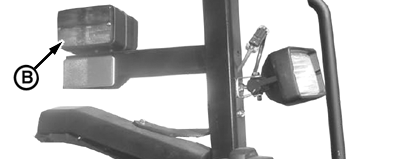

Rear Warning/Turn Signal and Tail Lights — L.H.

P13044-UN-15AUG08

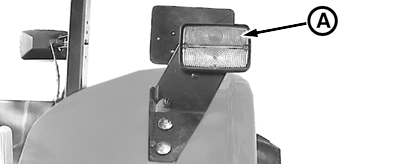

Front Warning/Turn Signal and Clearance Lights — L.H. (If Equipped)

P13480-UN-07JAN05

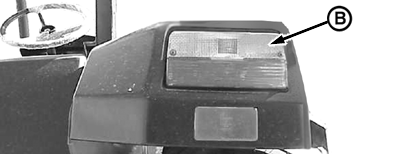

Rear Warning/Turn Signal and Tail Lights — R.H. (If Equipped)

P13667-UN-15AUG08

A - Front Warning/Turn Signal Lights

B - Rear Warning/Turn Signal Lights

C - Warning Light Switch

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use hand signals or turn signal lights.

Use headlights, flashing warning lights, and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible and in good working order. Replace or repair lighting and marking that has been damaged or lost. An implement safety lighting kit is available from your John Deere dealer.

If any trouble is encountered on the tractor when driving on public roads, switch on the warning/turn signal lights (A and B) using the warning light switch (C).
