Using Turn Signal—OOS

LV09153-UN-12JUL04

P16009-UN-16MAR10

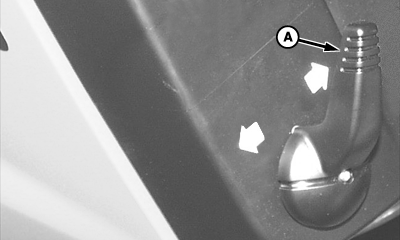

A - Turn Signal Lever

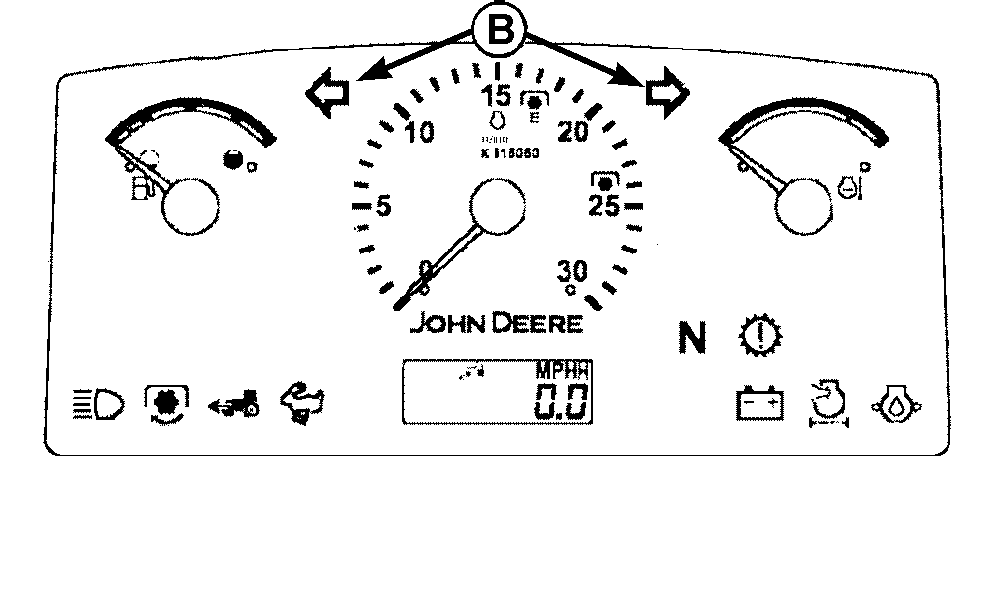

B - Dash Indicator Lights

Move turn signal lever (A) left to indicate left-hand turn or right for right-hand turn.

Indicator lights (B) will flash to signal turn direction.

P13466-UN-18MAR10

Front Warning/Turn Signal and Clearance Light — R.H.

P13467-UN-15AUG08

Rear Warning/Turn Signal and Tail Light — L.H.

P13044-UN-15AUG08

Front Warning/Turn Signal and Clearance Lights — L.H. (If Equipped)

P13480-UN-07JAN05

Rear Warning/Turn Signal and Tail Lights — R.H. (If Equipped)

P16007A-UN-25MAR10

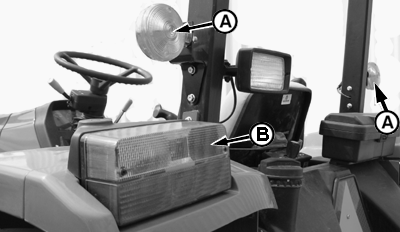

A - Front Warning/Turn Signal Light

B - Rear Warning/Turn Signal Light

When lever is at the left, the front warning/turn signal light (A) and rear warning/turn signal light (B) on the left-hand side will flash while the right-hand lights glow steady. When turn signal lever is at the right, the front warning/turn signal light (A) and rear warning/turn signal light (B) on the right-hand side will flash while the left-hand lights glow steady.

NOTE: Be sure to manually return lever to center position after turning.
